TV9900S
- Dimensions
- Length: 5000 mm · Height: 125 mm · Width: 76 mm
- Strength
- 8.8: up to 3 kN · 10.10: up to 4 kN
- Glass thickness
- 8.8.2 / 8.8.4 · 10.10.2 / 10.10.4
- Maximum height
- 8.8: up to 1300 mm · 10.10: up to 1600 mm
Price: on request
or call: +359 877 388 184
Detailed information
Description
TV9900S is our innovative, easy-to-install profile from the 9900 series for side mounting.

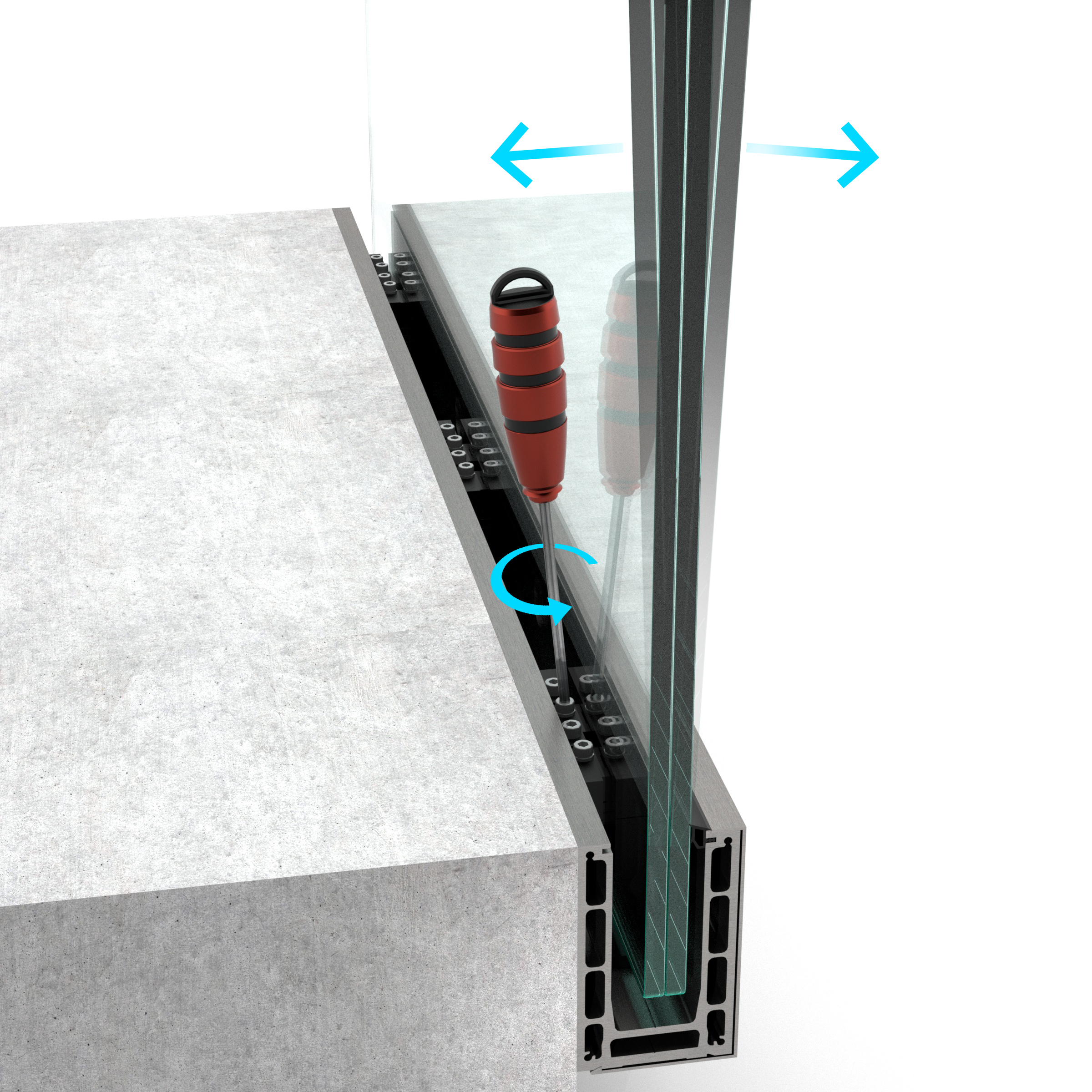

Precise alignment of the glass is done from the safe inside of the profile, using the so-called "Dura Lock Technology". Our TV9900 glass railing is AbP-approved and can be installed both indoors and outdoors as a fall-protection barrier.
Called "The Game Changer", TV9900 offers the highest rating for safety and durability.
Specifications
| Length | 5000 mm |
|---|---|
| Height | 125 mm |
| Width | 76 mm |
| Strength | 8.8: up to 3 kN · 10.10: up to 4 kN |
| Glass thickness | 8.8.2 / 8.8.4 · 10.10.2 / 10.10.4 |
| Maximum height | 8.8: up to 1300 mm · 10.10: up to 1600 mm |
Components
-

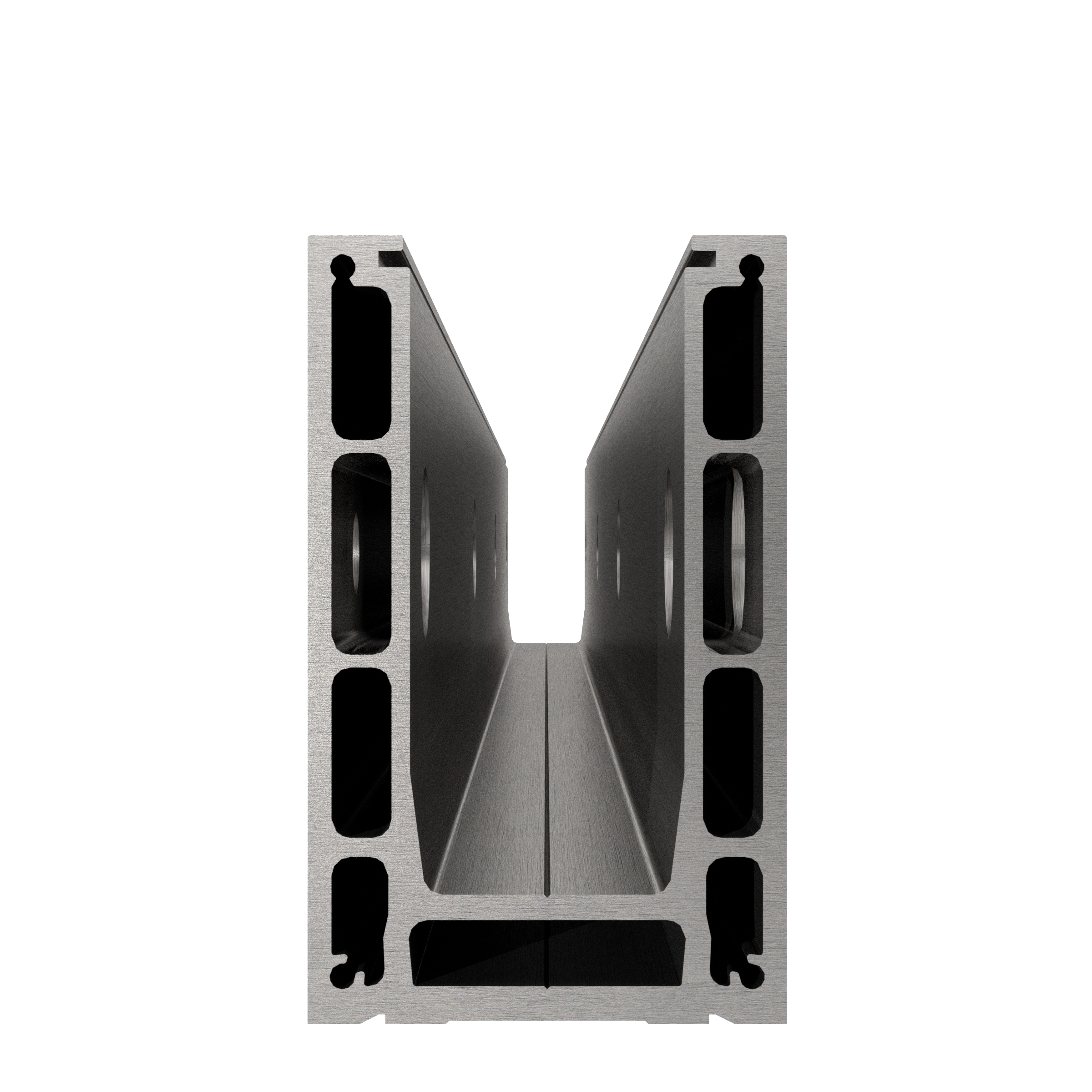

Aluminium profile
Top-quality series · aluminium · EN AW 6060
-

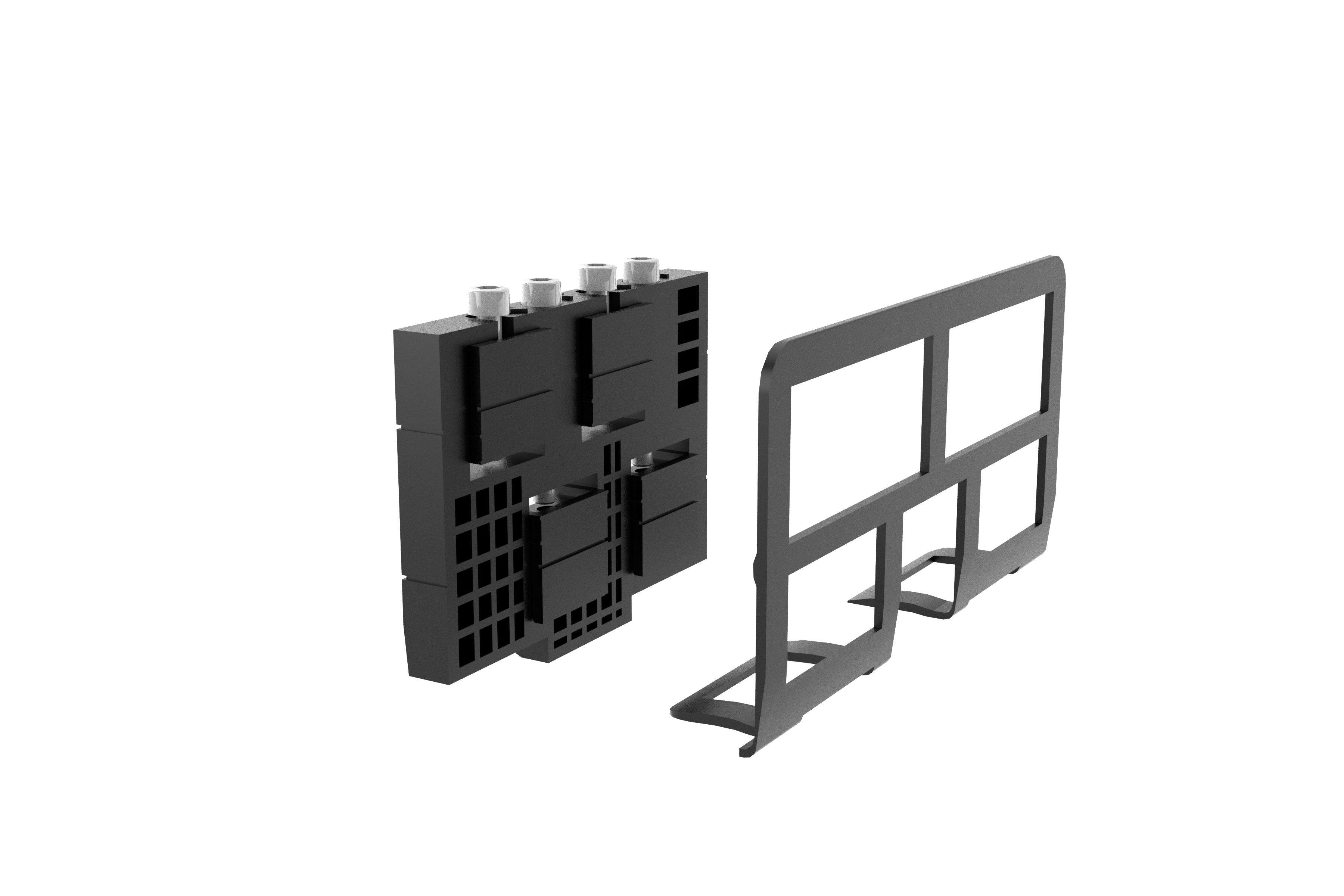

Cassette
Wedge and plastic insert K9900-16 (16 mm) · K9900-20 (20 mm)
-
Rubber seal
RG-9900-B, RG-0091, RG-0092 and RG-0093
-
M5 hex key
M5 hex key, for use with an electric screwdriver
-

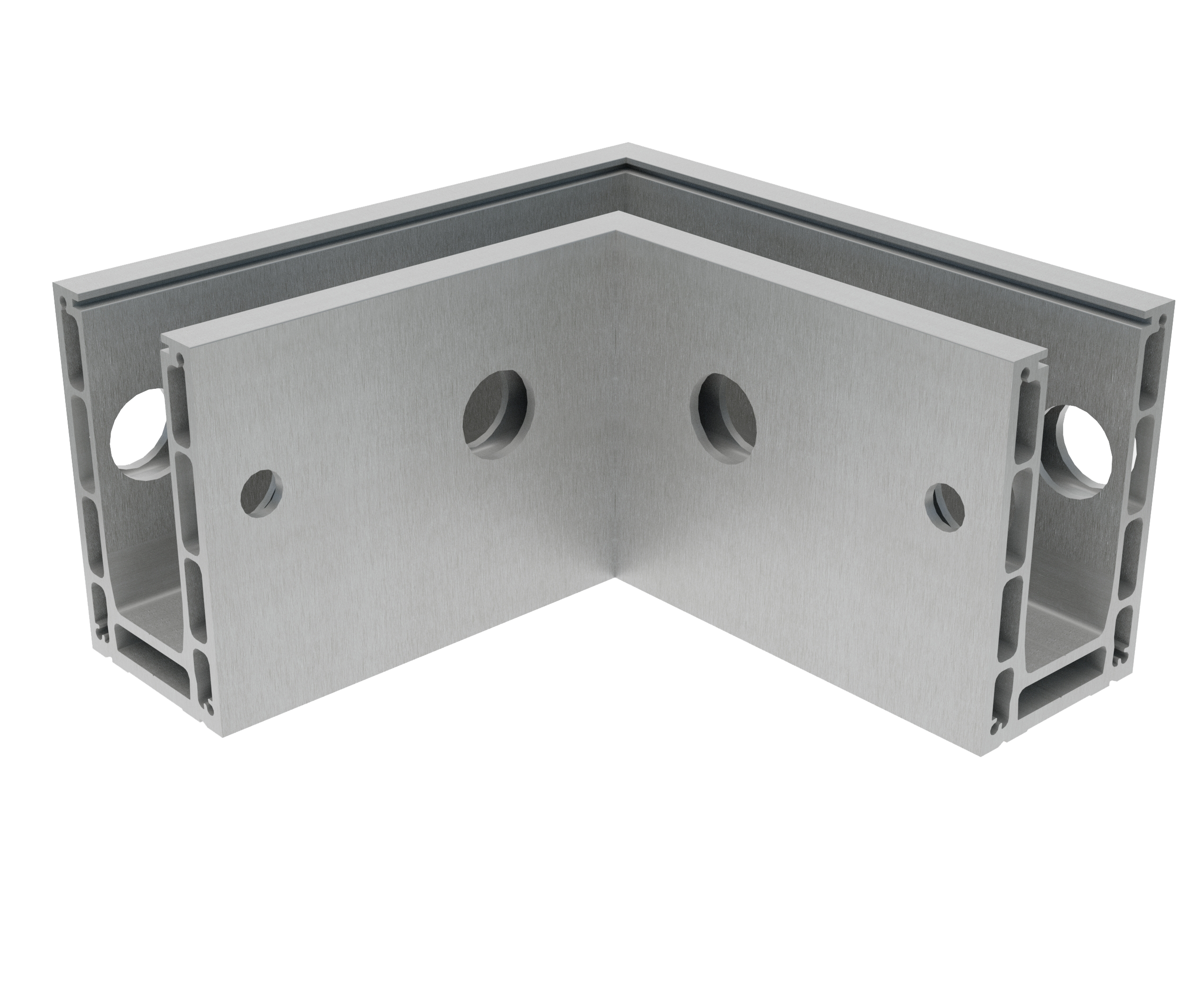

TV9900 corner
Corner element for the TV9900 glass railing
-
TV9900K
Start and end caps for the glass system
Assembly
-

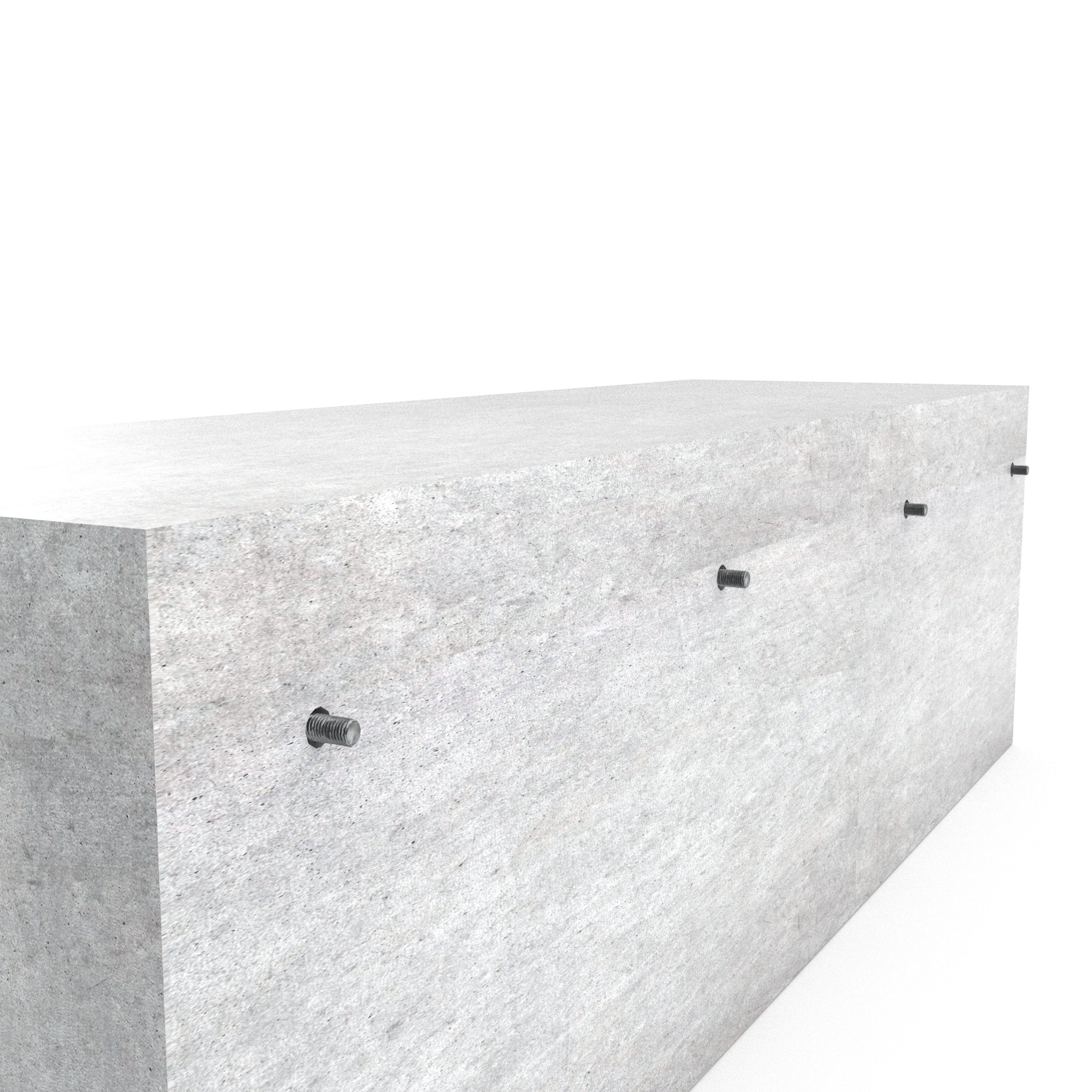

Drill, clean, apply adhesive and set the chemical anchor.
-

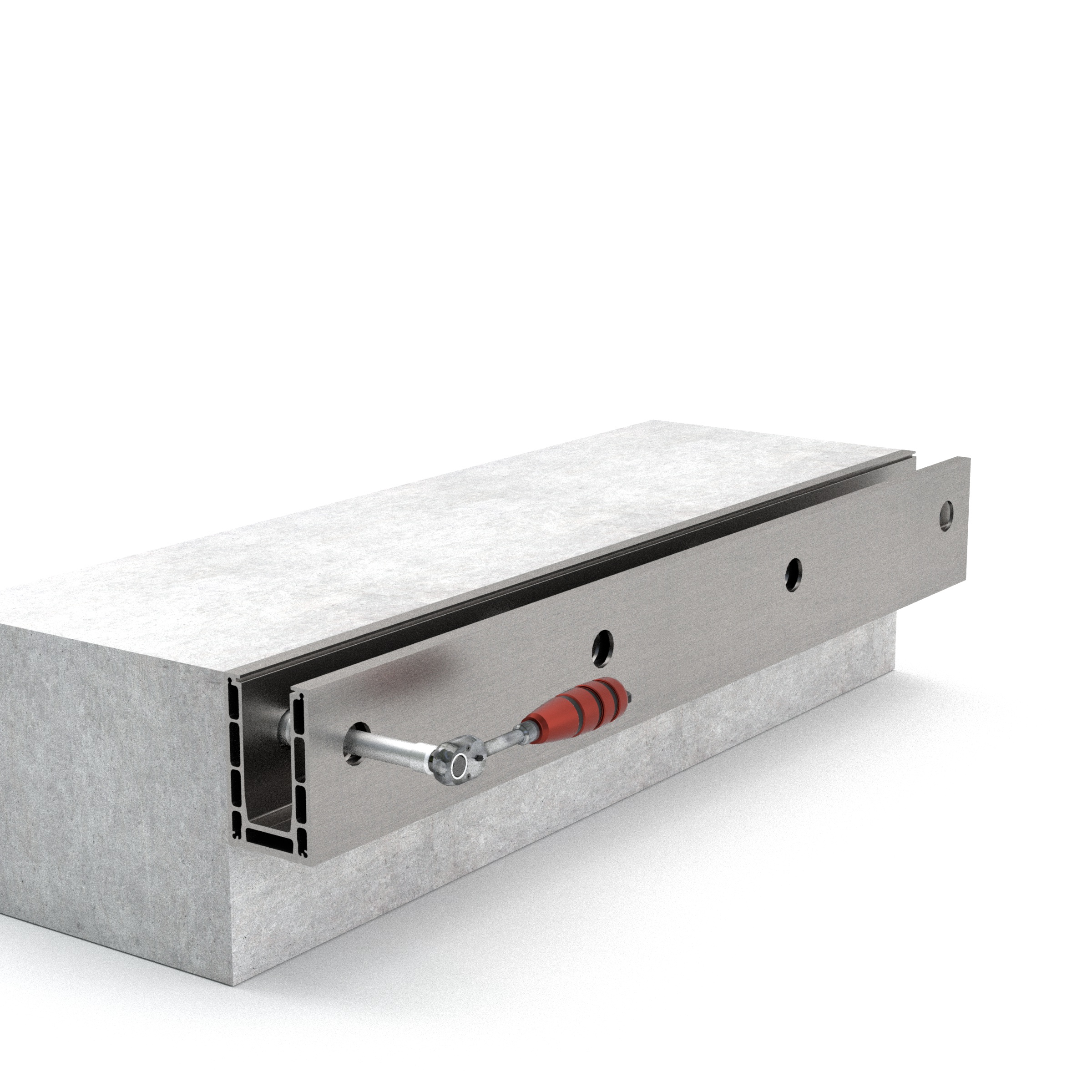

Align the system and fix it with a ratchet.
-

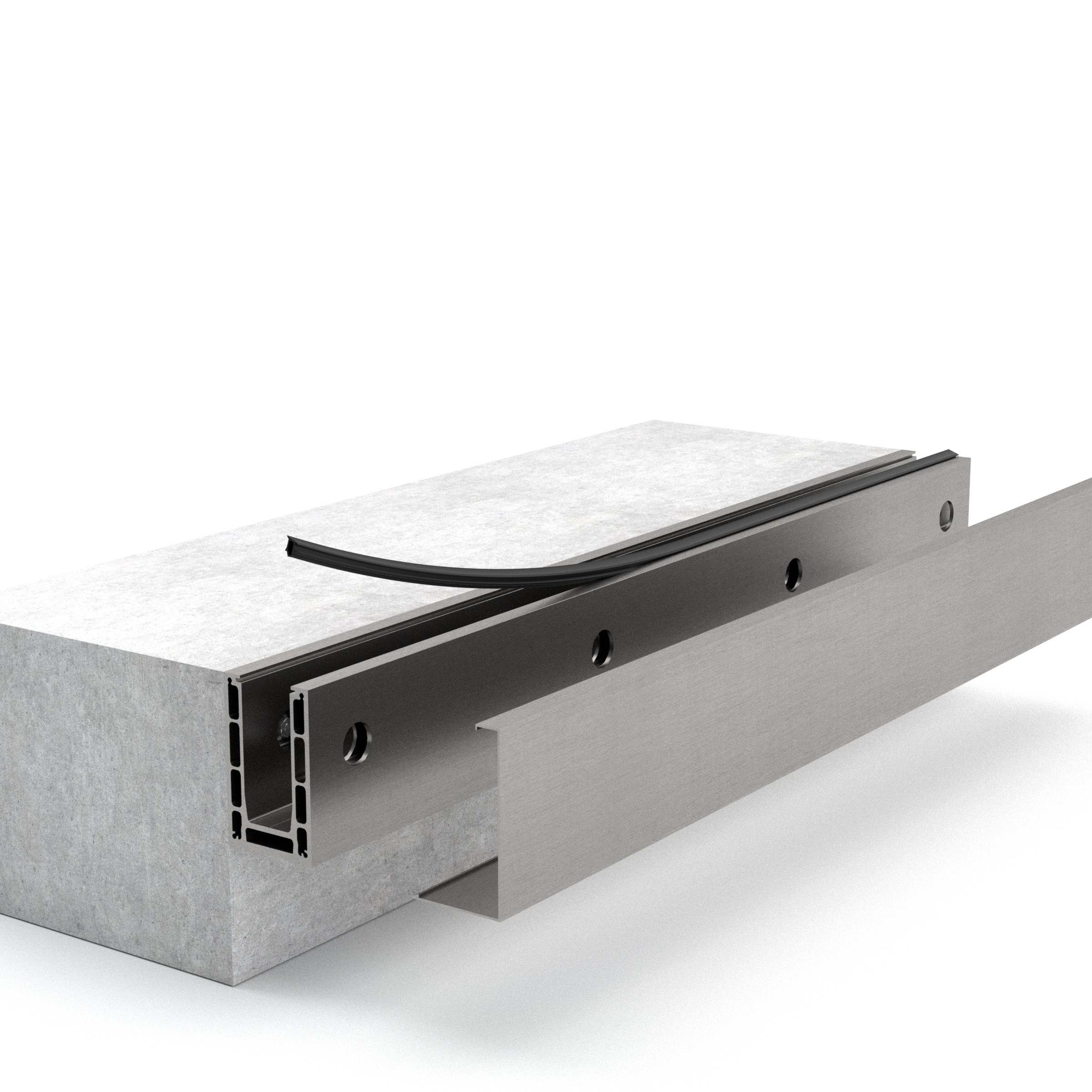

Fit the cover and the rubber seal.
-

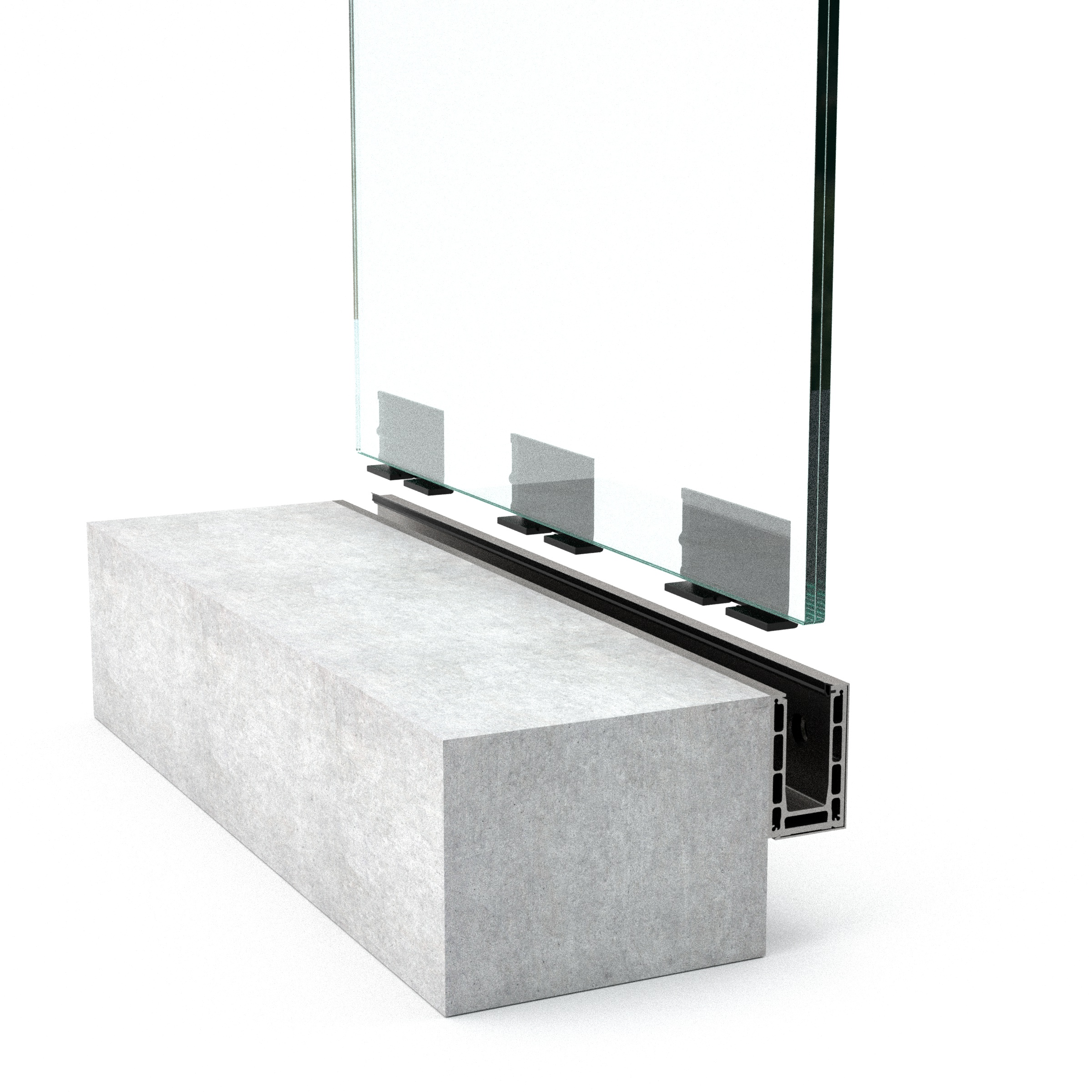

Fit the plastic insert and the laminated glass.
-
Fit the adjustment system and adjust as shown in the larger picture.
-

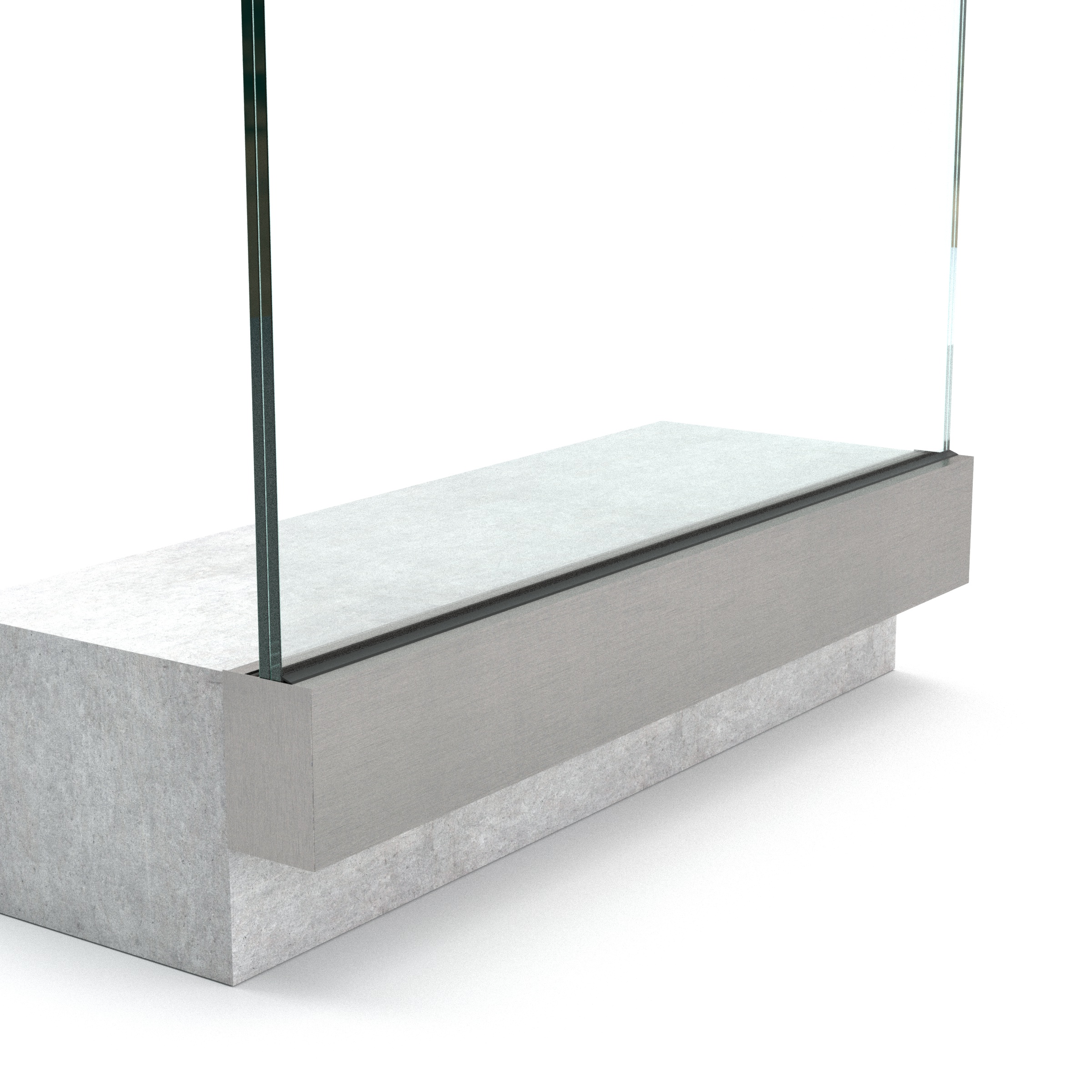

Finished look.
Certificates
-
10.10 4 kN certificate
Test certificate from the German building supervisory authority TV9900S, German standard for side mounting DIN 18008-4 ILS
Download PDF
