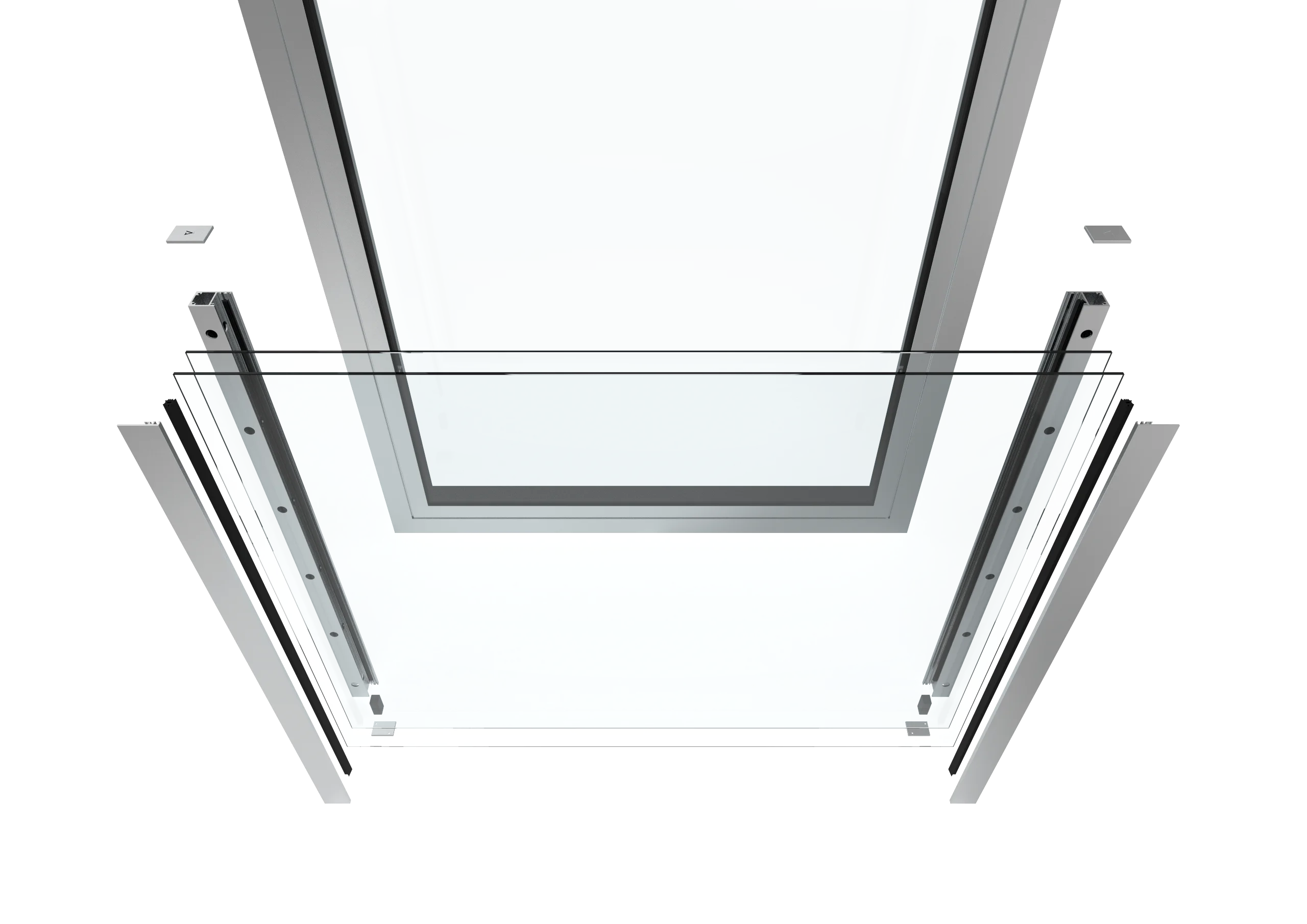

French balconies
High load-capacity glass railing system, designed for large openings and larger glass modules.
- Double toughened glass with PVB interlayer
- EPDM rubber seals
- Chemical anchors
- Transparent pad (Clear Pad) 3.5 mm
- Aluminium profile TV-55-FB
Price: on request
or call: +359 877 388 184
Detailed information
Description

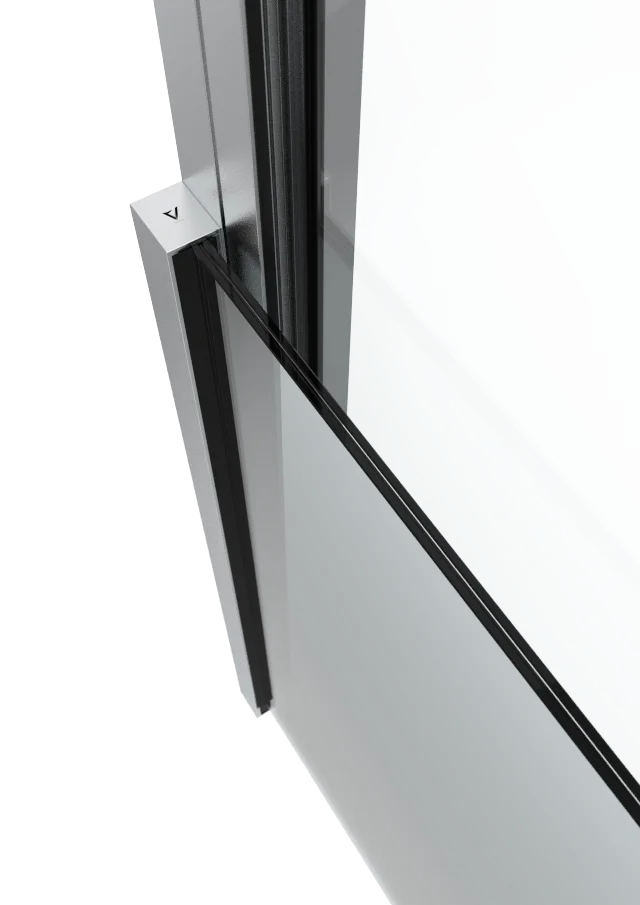

TV 55 FB is an exceptionally strong, design-led glass railing system developed for large openings and high-end architecture. The deeper profile section and greater mass provide outstanding stability and allow larger glass modules and wider spacing between anchor points.
The result is calm, continuous glass surfaces with a minimum of visual interruptions in the field of view.
Installation and fine adjustment are done safely from the inside using a precise wedge mechanism that allows vertical and horizontal adjustment without having to reposition the glass.
The system is designed for high load categories in residential, hotel and public buildings and gives a predictable, secure feel when leaning on it, even under wind and dynamic loads.
Stainless steel load-bearing elements, combined with durable EPDM seals and glass-reinforced adjustment wedges, ensure a permanently stable and reliable construction.
TV 55 FB is available for top mounting (Aufsatz) and side mounting, and the system is completed by discreet decorative covers and end pieces. A choice of anodised finishes and RAL powder coating allows it to blend into any architectural concept.
CAD and BIM data are available for smooth project planning.
Specifications
| Profile length | 5000 mm / 2000 mm |
|---|---|
| Base channel height | 55 mm |
| Base channel width | 42 mm |
| Weight per metre | 2.057 kg |
| Profile material | AW6063-T6 |
| Recommended anchors | INOX A4 |
| Laminated glass 13.14 to 13.52 mm | 6 + 1.14 + 6 / 6 + 1.52 + 6 |
| Laminated glass 17.14 to 17.52 mm | 8 + 1.14 + 8 / 8 + 1.52 + 8 |
Components
-
TV55FB straight connector
Connector for a straight joint of the TV 55 FB profile.
-
TV55FB 90° corner
Connector for a 90-degree corner of the TV 55 FB profile.
-
TV6022S
Wall connection (Wandanschluss) for mounting to a wall.
Matching handrails
