TV9900
Adjustable system for floor mounting
- AbP-certified
- Indoor and outdoor installation
- Glass adjustment up to ±2°
- Dura Lock Technology
- Dimensions
- Length 5000 mm · Height 125 mm · Width 76 mm
- Strength
- 8.8: up to 3 kN · 10.10: up to 4 kN
- Glass thickness
- 8.8.2 / 8.8.4 · 10.10.2 / 10.10.4
- Maximum height
- 8.8: up to 1300 mm · 10.10: up to 1600 mm
Price: on request
or call: +359 877 388 184
Detailed information
Description
TV9900 is our innovative, easy-to-install profile for floor mounting.
Precise alignment of the glass is done from the safe inside of the profile, using the so-called "Dura Lock Technology". Our TV9900 glass railing is AbP-approved and can be installed both indoors and outdoors as a fall-protection barrier.
Called "the game changer", TV9900 boasts the highest rating for safety and durability.
Specifications
| Profile length | 5000 mm |
|---|---|
| Profile height | 125 mm |
| Profile width | 76 mm |
| Load capacity | 8.8: up to 3 kN; 10.10: up to 4 kN |
| Glass thickness | 8.8.2 / 8.8.4; 10.10.2 / 10.10.4 |
| Maximum glass height | 8.8: up to 1300 mm; 10.10: up to 1600 mm |
| Profile material | Aluminium EN AW 6060 |
| Mounting type | Floor |
| Certificate | AbP · DIN 18008-4 |
Components
-

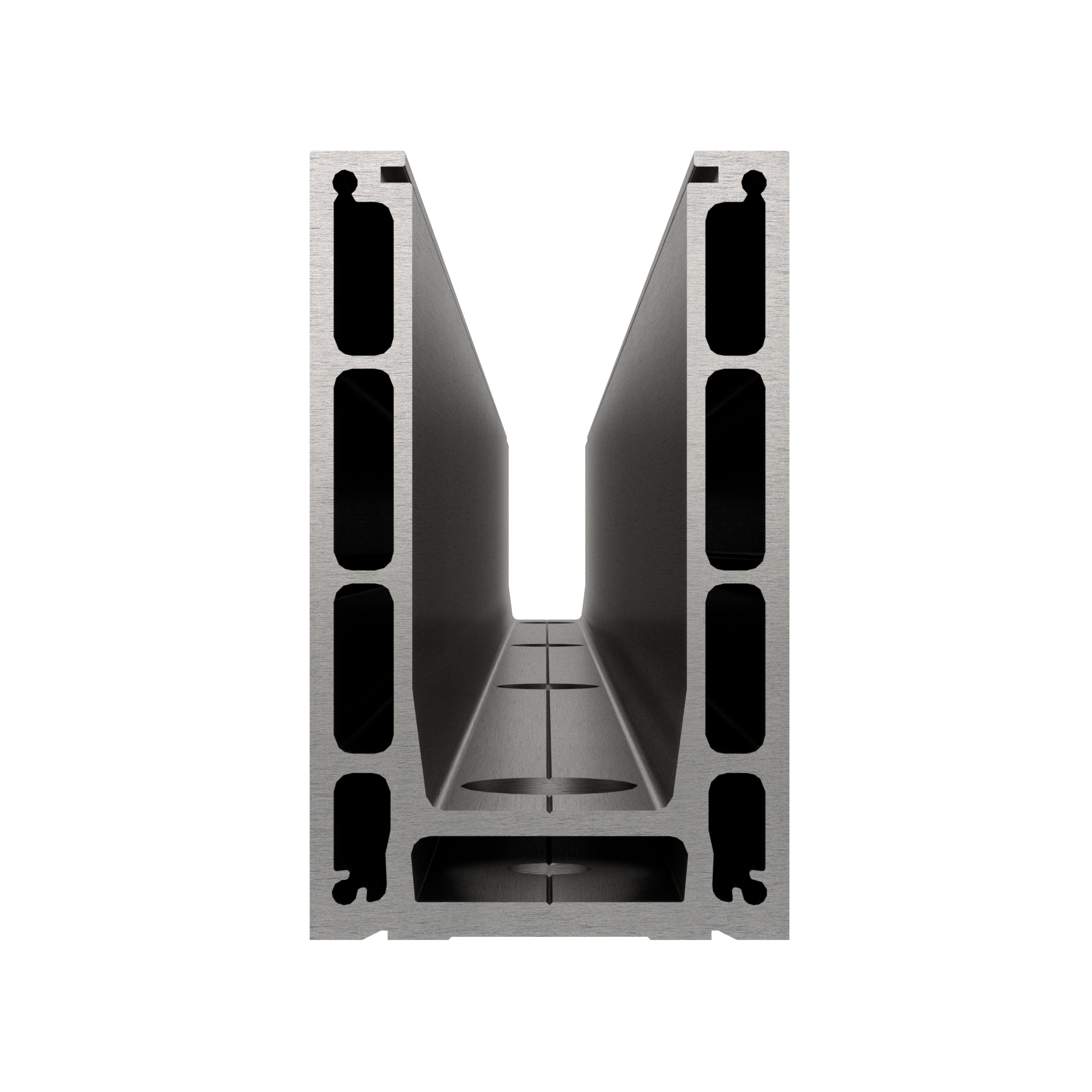

Aluminium profile
Top-quality series in aluminium EN AW 6060
-

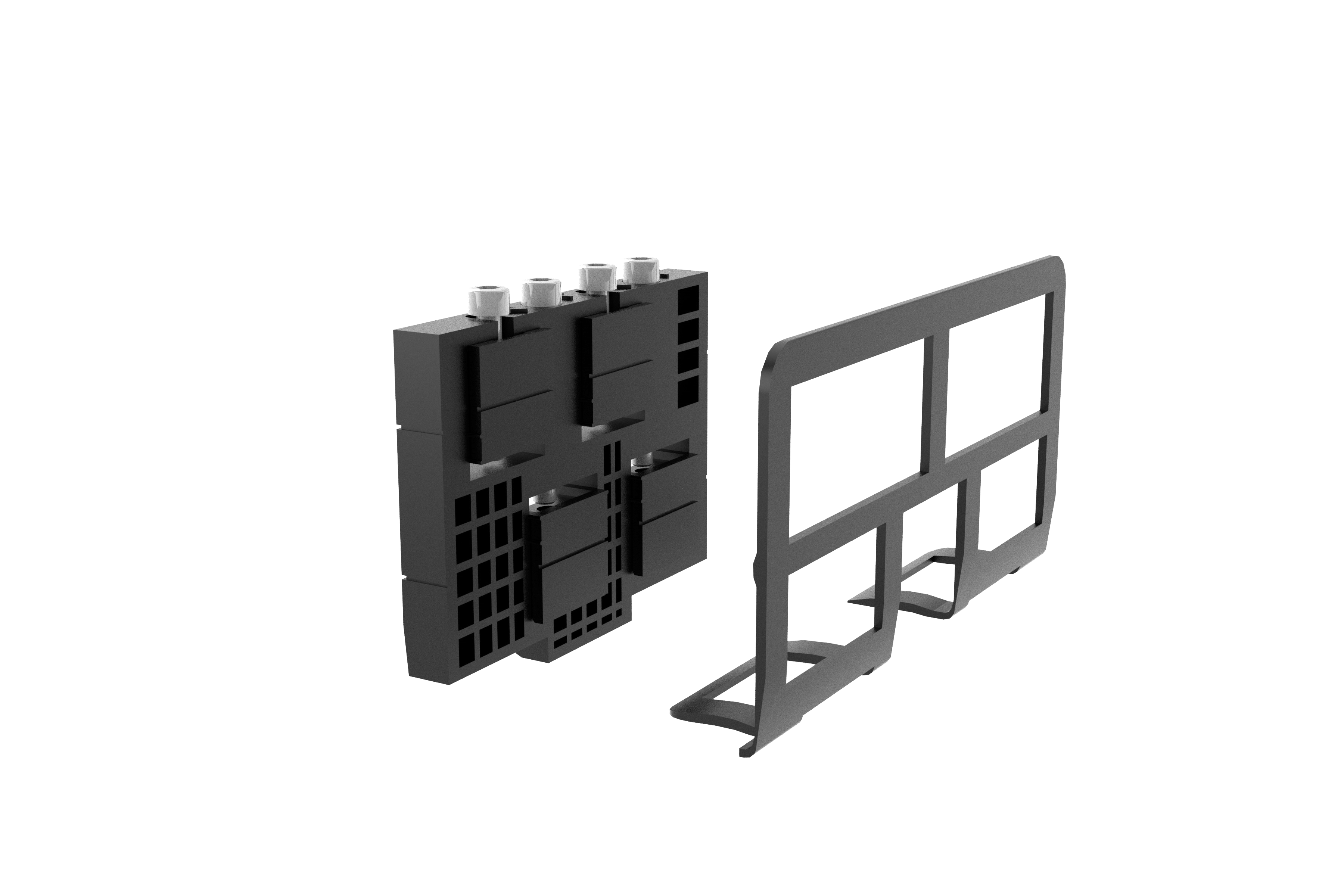

Cassette
Wedge and plastic insert K9900-16 (16 mm), K9900-20 (20 mm)
-

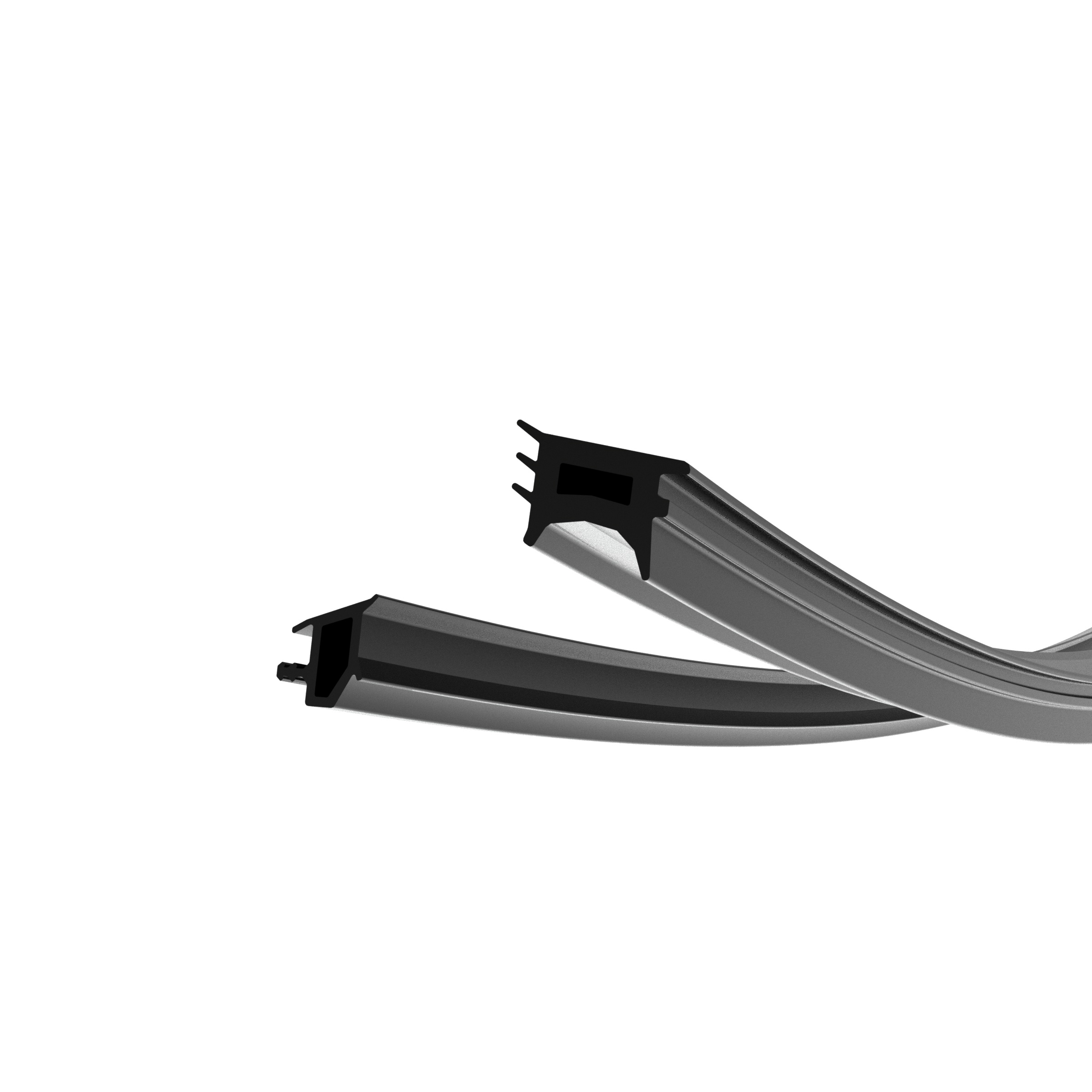

Rubber seal
RG-9900-B, RG-0091, RG-0092 and RG-0093
-
M5 hex key
M5 hex key, for use with an electric screwdriver
-

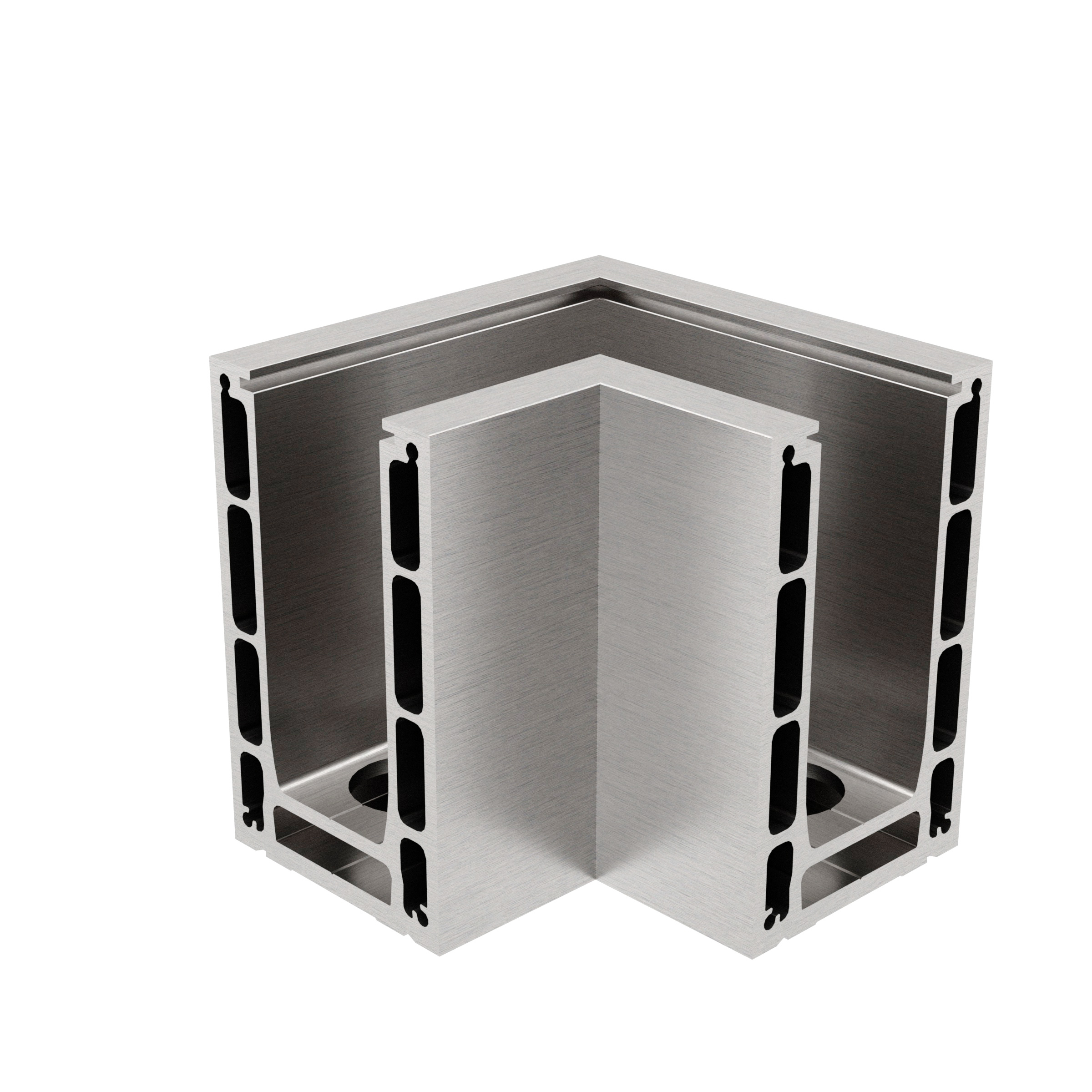

TV9900 corner
Corner element for the TV9900 glass railing
-
TV9900K
Start and end caps for the glass system
Assembly
-

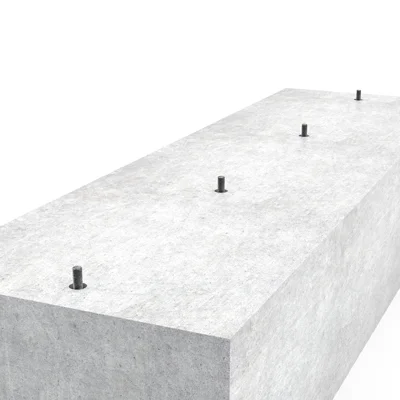

Drill, clean, apply adhesive and set the chemical anchor
-
Align the system and fix it with a ratchet
-
Fit the rubber seal, the plastic insert and the laminated glass.
-
Fit the adjustment system and align the glass as shown in the larger picture.
-
Fit the front rubber, the start cap and the end cap.
-
Finished look.
Certificates
-
10.10 4 kN certificate
Test certificate from the German building supervisory authority. TV9900, German standard for top mounting DIN 18008-4, ILS.
Download PDF
Variations of the TV9900 series
Projects using TV9900
Questions about TV9900
For laminated safety glass 8.8.2 / 8.8.4 and 10.10.2 / 10.10.4, in line with the AbP requirements for structural glass.
Up to 1300 mm with 8.8 and up to 1600 mm with 10.10. The load capacity is 3 kN and 4 kN respectively.
Yes. The profile is made of EN AW 6060 aluminium and the seals are UV- and water-resistant, so indoor and outdoor installation are equally possible.
The standard length is 5000 mm. We cut to a custom size on order.
Using Dura Lock Technology, from inside the profile, by up to 2 degrees. The glass does not need to be removed.
We recommend it. Anchoring and tilt adjustment determine the load capacity of the whole structure.
