TV7600

TV7600
Aluminium profile
Wedge and plastic insert
Rubber seal
Wedge driver
TV7600 corner
TV7600K
Dimensions
Length: 5000 mm · Height: 119 mm · Width: 54 mm
Strength
6.6: up to 1 kN · 8.8: up to 2 kN
Glass thickness
6.6.2 / 6.6.4 · 8.8.2 / 8.8.4
Maximum height
6.6: up to 1100 mm · 8.8: up to 1150 mm

Price: on request

Request a quote

or call: +359 877 388 184

Detailed information

Description

TV7600 is our newest top-mounted system, developed by our engineering team. This budget-oriented system offers an elegant design, easy installation and minimal maintenance.

The glass is secured or fixed in seconds using wedges and a wedging guide. TV7600 is well suited to domestic and residential applications. It is certified to 2 kN. You can be confident that the system will keep its integrity under heavy loads and intensive use.

Specifications

Length 5000 mm
Height 119 mm
Width 54 mm
Strength 6.6: up to 1 kN · 8.8: up to 2 kN
Glass thickness 6.6.2 / 6.6.4 · 8.8.2 / 8.8.4
Maximum height 6.6: up to 1100 mm · 8.8: up to 1150 mm

Components

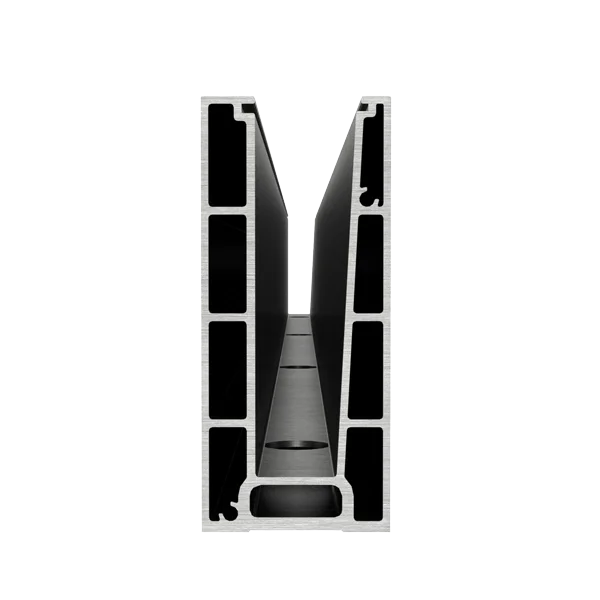

  • Aluminium profile

    Aluminium profile

    Top-quality series · aluminium · EN AW 6060

  • Wedge and plastic insert

    Wedge and plastic insert

    Wedge and plastic insert K7600-16 (16 mm) · K7600-12 (12 mm)

  • Rubber seal

    Rubber seal

    RG-5F, RG-5A, RG-5B, RG-5C

  • Wedge driver

    Wedge driver

    Tool for inserting wedges.

  • TV7600 corner

    TV7600 corner

    Corner element for the TV7600 glass railing

  • TV7600K

    TV7600K

    Start and end caps for the glass system

Assembly

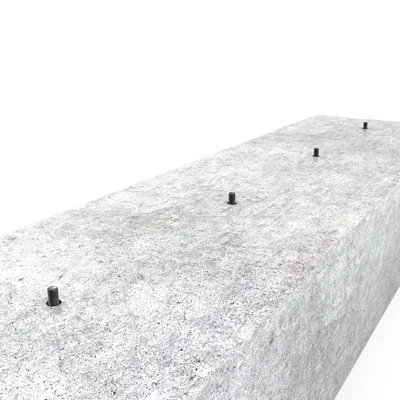

  1. Step 1

    Drill, clean, apply adhesive and set the chemical anchor.

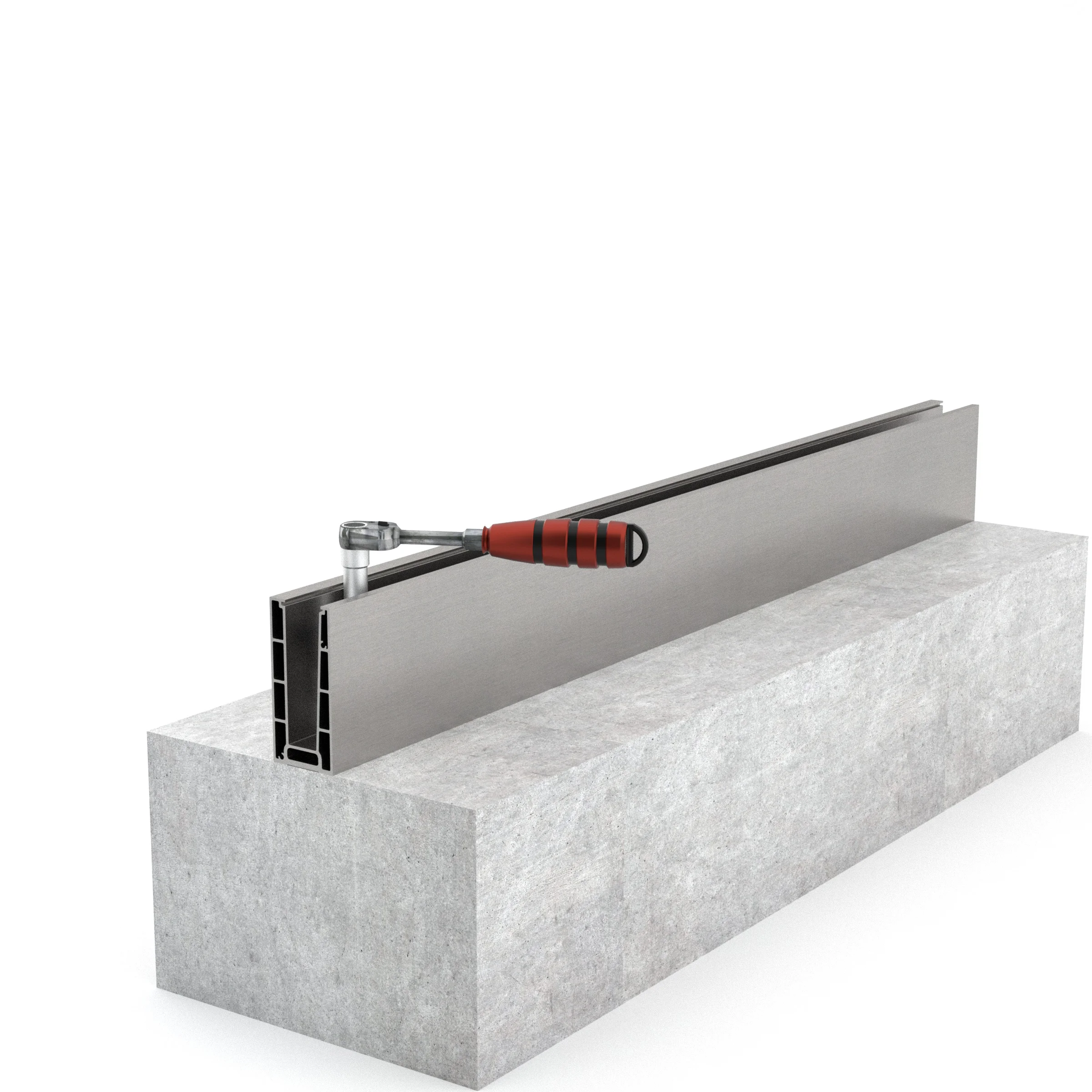

  2. Step 2

    Align the system and fix it with a ratchet.

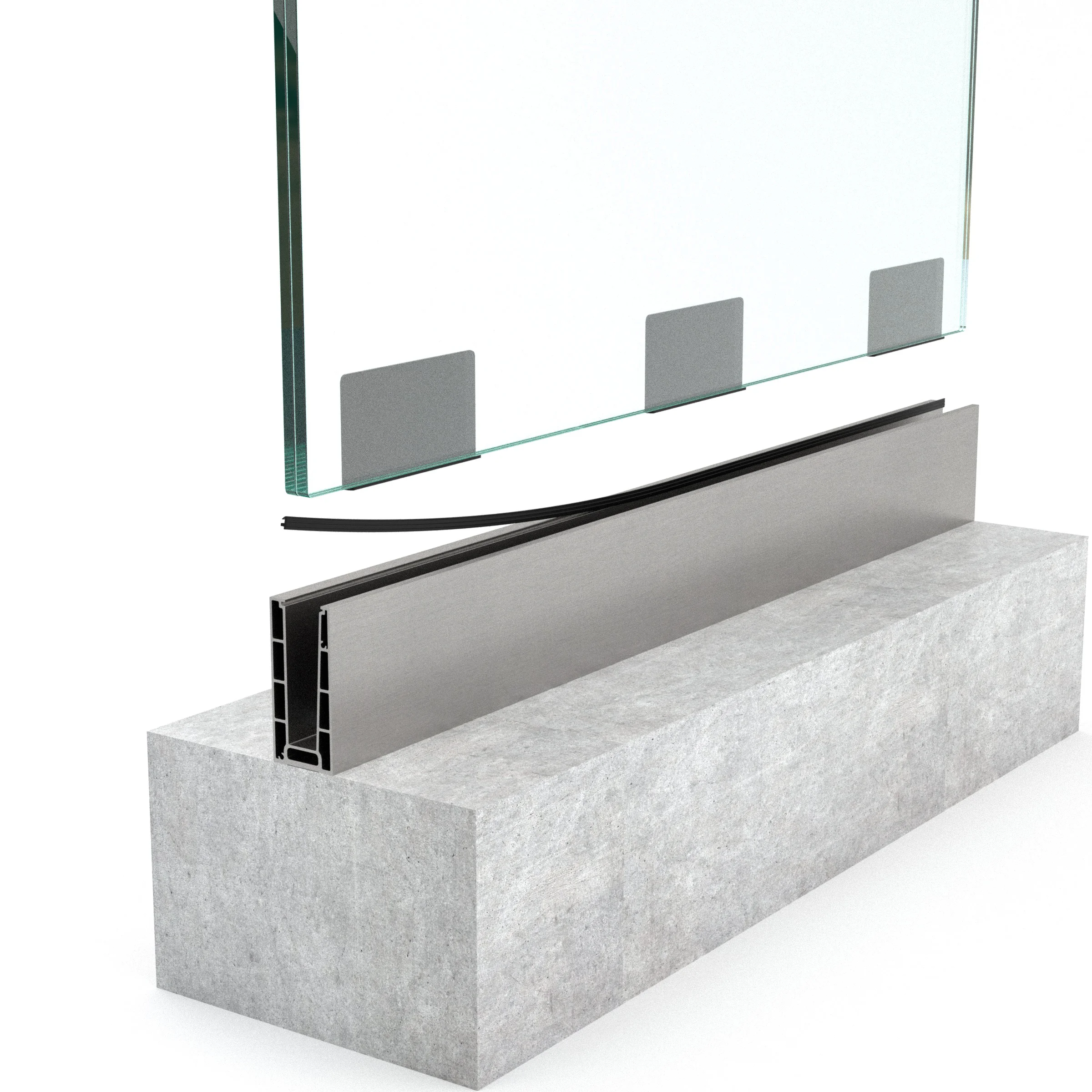

  3. Step 3

    Fit the cover and the rubber seal.

  4. Step 4

    Fit the plastic insert and the laminated glass.

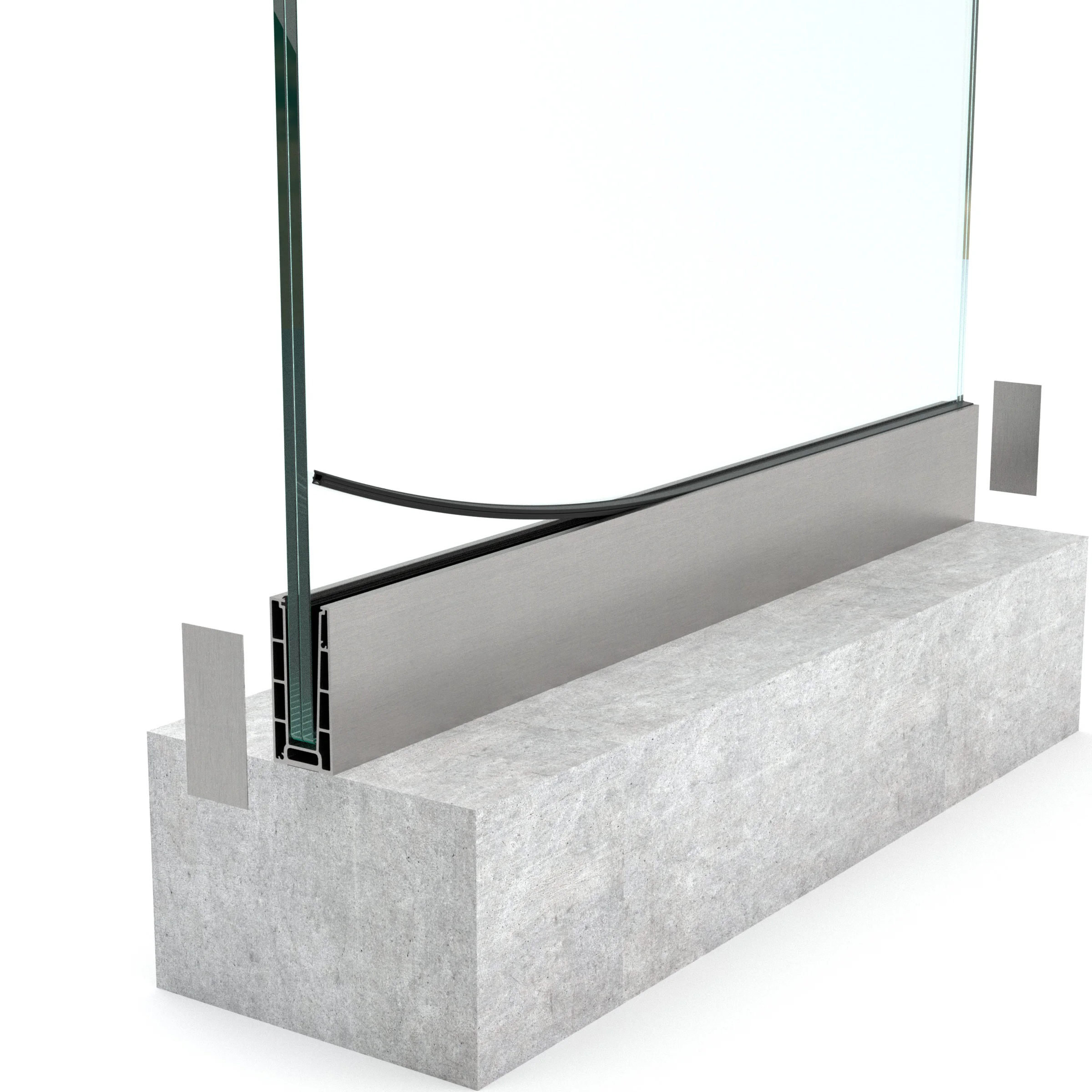

  5. Step 5

    Fit the front rubber seal and the start and end caps.

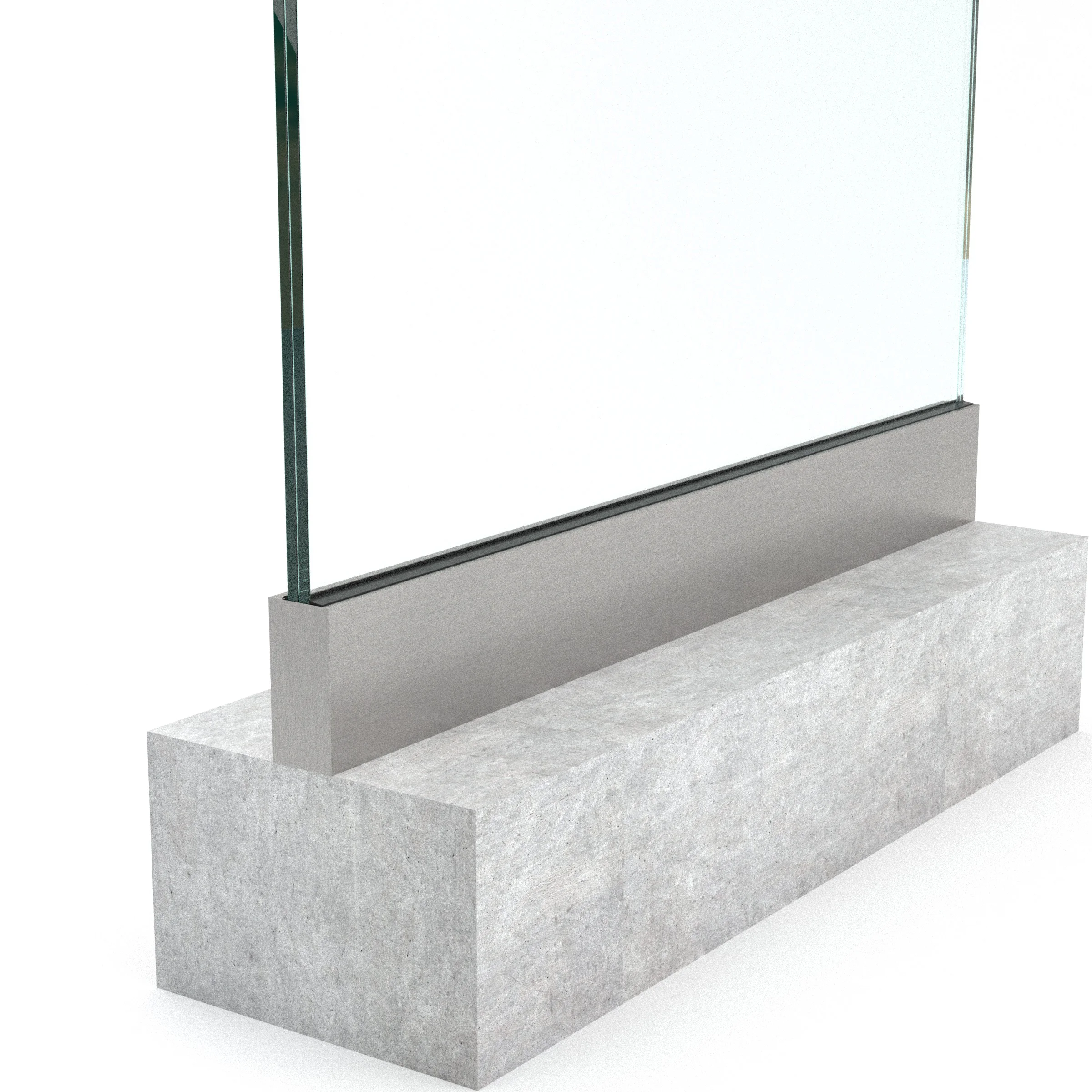

  6. Step 6

    Finished look.

Certificates

  • 10.10 4 kN certificate

    Test certificate from the German building supervisory authority TV7600, German standard for top mounting DIN 18008-4 ILS

    Download PDF

Variations of the TV7600 series

Enquiry about

We send a personal quote for your project, based on the exact measurements and mounting type. What you get:

  • Personal quote within 2 hours during business hours
  • Free consultation on your project
  • AbP-certified aluminium systems
